Customized Soldering Tip Solution for Complex Shape Products in Poland
Customer Background
Customized Soldering Tips for Complex Shape Products
A Polish customer was facing challenges in soldering products with different shapes and structures. Due to the variety of product designs, standard soldering tips could not provide a suitable solution for all applications.
Different products required different:
- Soldering positions
- Contact angles
- Heating areas
- Tip shapes
Using the same standard soldering tip resulted in:
- Difficult positioning during soldering
- Unstable soldering quality
- Low production efficiency
- Increased operator adjustment time
The customer needed a customized soldering tip solution designed specifically for each product application.
Customer Requirements
[caption id="attachment_19459" align="alignnone" width="600"]

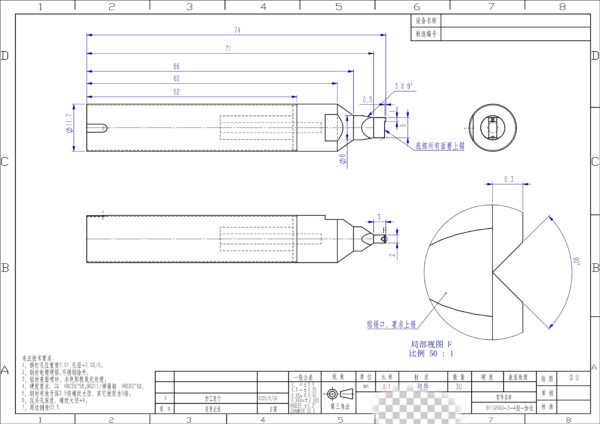

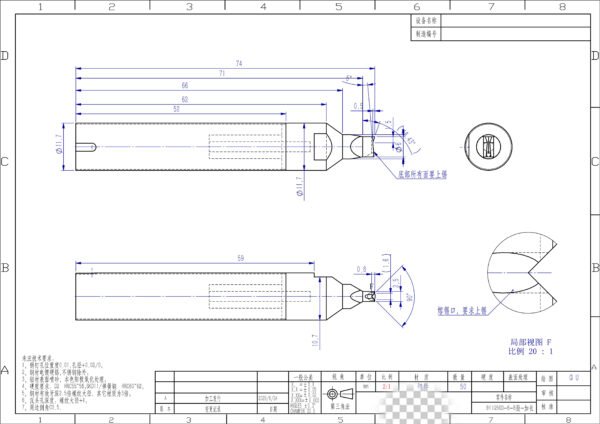

Customized Tips for Different Product Designs
The customer’s products included multiple non-standard shapes and structures. The main requirements were:
1. Different Tip Geometries
Each product required a specific tip shape to achieve accurate contact with the soldering area. Requirements included:
- Different angles
- Different working surfaces
- Different tip dimensions
2. Stable Heat Transfer
The customized tips needed to deliver heat accurately to the soldering area while avoiding unnecessary heat impact on surrounding components.
3. Improved Production Efficiency
The customer wanted to reduce:
- Manual adjustment time
- Soldering difficulty
- Inconsistent solder joints
Our Solution
Application-Based Custom Soldering Tip Development
After analyzing the customer’s product structures and soldering requirements, Zhongzhen developed customized soldering tips based on each application.
1. Product & Application Analysis
Our engineering team analyzed:
- Product shape
- Soldering position
- Contact requirements
- Working conditions
to determine the suitable soldering tip design.
2. Customized Tip Design
Instead of using standard soldering tips, we developed different tip geometries according to each product. The customization included:
- Tip shape
- Tip angle
- Contact area
- Size design
This ensured better matching between the soldering tip and the product.
3. Prototype Testing & Optimization
Before mass production, samples were developed and tested. Based on testing results, we optimized:
- Heat transfer performance
- Soldering stability
- Operation convenience
Result
Improved Soldering Accuracy and Production Stability
✓ Better compatibility with different product shapes
✓ More accurate soldering positioning
✓ Improved soldering consistency
✓ Reduced operator adjustment time
✓ More stable production performance
The customized solution helped the customer improve production efficiency while maintaining consistent soldering quality.
Why Custom Soldering Tips Are Important for Special Applications
Standard soldering tips are suitable for common soldering tasks. However, when products have:
- Complex structures
- Different soldering positions
- Limited working space
- Special contact requirements
custom soldering tips can provide a more effective solution.
At Zhongzhen, we support customers from:
Sample Analysis → Design Development → Prototype Testing → Mass Production
to create soldering tips designed for their specific applications.
