Customized High-Performance Soldering Tip Solution for Automotive Electronics Manufacturer in Mexico
Zhongzhen specializes in developing custom soldering tip solutions for demanding industrial applications. This case study demonstrates how our engineering team delivered a high-performance soldering tip for a Mexican automotive electronics manufacturer facing extreme operating conditions.
Customized High-Performance Soldering Tip Solution for Automotive Electronics Manufacturer in Mexico
Customer Background

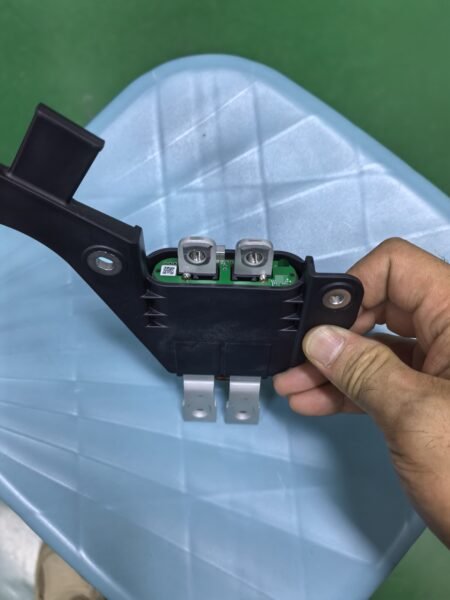

A leading Mexican automotive electronics manufacturer required a customized soldering tip solution for its production process. The customer was facing challenges with their existing soldering tips, including:
- Short service life under high-temperature operation
- Insufficient solder penetration capability
- Severe oxidation during continuous use
- Unstable soldering performance during production runs
To improve production efficiency and reduce frequent tip replacement, the customer needed a high-performance soldering tip with better durability and soldering stability.
Customer Requirements
_cuva
| Parameter | Requirement |
|---|---|
| Working Temperature | 430°C continuous high-temperature operation |
| Soldering Duration | Single-point contact time ≥ 30 seconds |
| Oxidation Resistance | Must resist oxidation during extended high-temperature use |
| Service Life | Minimum 500 soldering cycles |
| Heat Transfer | Strong solder penetration with stable heat transfer |
Key Challenge
At 430°C with 30+ seconds single-point contact time, standard soldering tips experienced rapid oxidation and degradation. The tip needed to maintain stable heat transfer and solder wetting performance throughout its entire service life — a combination of demands that off-the-shelf tips could not satisfy.
Our Solution
After receiving the customer’s requirements, Zhongzhen’s engineering team analyzed the application conditions and developed a customized soldering tip solution through the following process:
1. Application Analysis
We evaluated the working temperature, soldering duration, contact conditions, and required solder penetration performance to determine the appropriate design direction.
2. Structural Optimization
Based on the application, we optimized the tip geometry, heat transfer structure, and working area design to improve soldering efficiency and stability.
3. Material & Surface Treatment Optimization
To meet the high-temperature requirements, we optimized the material selection and surface treatment process. The customized soldering tip was engineered to provide:
- Better oxidation resistance
- Stable heat transfer throughout service life
- Extended working lifespan under continuous operation
Result
Engineering Collaboration Process
Effective custom soldering tip development requires close collaboration between the manufacturer and the engineering team. Throughout this project, Zhongzhen maintained regular communication with the customer’s production engineers to ensure the tip design aligned with their actual workflow.
The development cycle included multiple rounds of prototype testing under real production conditions. Each prototype was evaluated based on heat transfer efficiency, oxidation resistance after prolonged exposure, and solder wetting quality. This iterative approach allowed us to refine the tip geometry and surface treatment until all performance targets were met.
Final validation was conducted on the customer’s production line over a two-week trial period. The results confirmed that the customized soldering tip maintained consistent performance throughout the 500+ cycle requirement, with no significant degradation in solder quality or heat transfer efficiency.
The success of this project reinforced our commitment to understanding each customer’s unique production environment. By combining material science expertise with practical manufacturing experience, Zhongzhen continues to deliver soldering tip solutions that solve real production challenges — not just sell products off the shelf.
After testing and validation, the customized soldering tip achieved:
- ✓ Stable operation at 430°C
- ✓ Continuous soldering performance with 30+ seconds single-point contact time
- ✓ Improved solder penetration capability
- ✓ Enhanced oxidation resistance
- ✓ Service life exceeding 500 soldering cycles
The solution helped the customer improve soldering consistency and significantly reduce downtime caused by frequent soldering tip replacement.
Why Choose Zhongzhen for Custom Soldering Tips?
Different industries have different soldering requirements. For applications requiring high temperature resistance, long service life, special tip designs, and stable soldering performance, Zhongzhen provides customized soldering tip development — from sample analysis to mass production.
Our engineering team supports: Sample Evaluation → Design Development → Prototype Testing → Mass Production
