911 D Soldering Tip | QUICK 911 Compatible

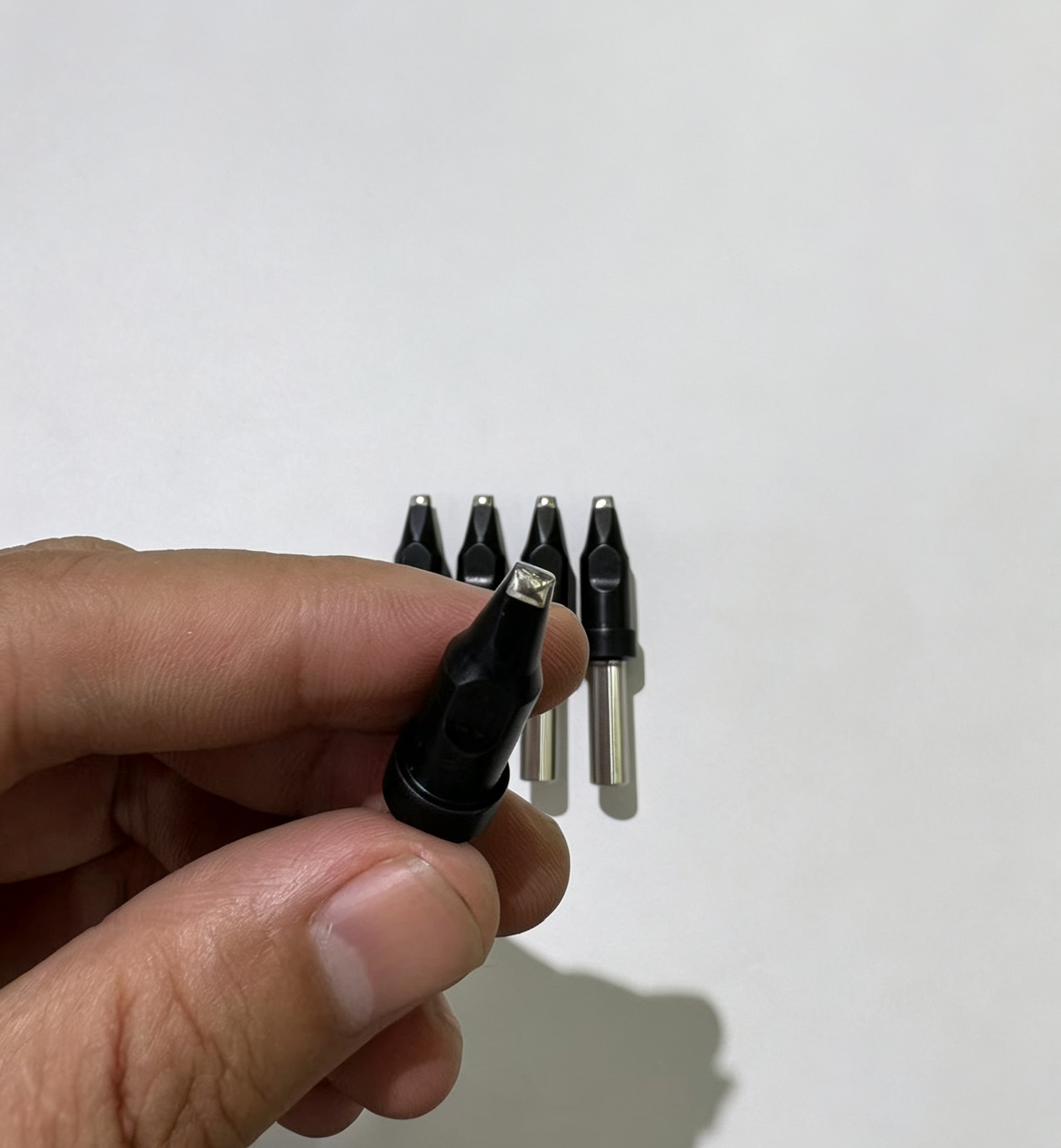

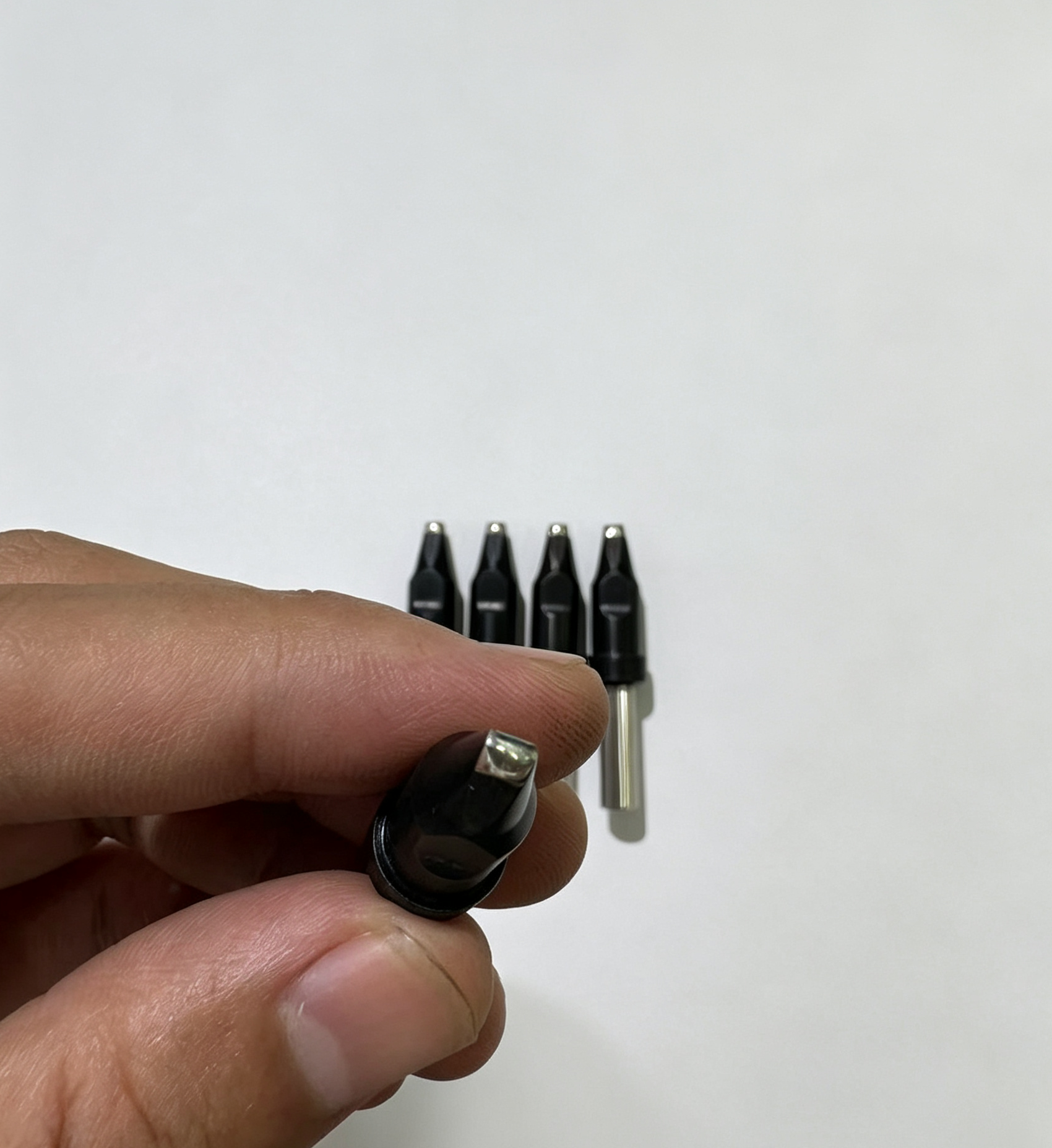

911 D soldering tips from Zhongzhen are precision-engineered flat D-type nozzle tips for QUICK 911 series automatic soldering robots. The flat D-type mouth design delivers stable heat conduction and uniform solder output across every solder joint, with an all-in-one heating core and nozzle for plug-and-play installation.
Available Models of 911 D Soldering Tips
| Model | Nozzle Width | Tip Type | Typical Application |
|---|---|---|---|
| 911-16D | 1.6mm | Flat D-Type Nozzle | General-purpose auto soldering |
| 911-20D | 2.0mm | Flat D-Type Nozzle | Medium-pad PCB soldering |
| 911-24D | 2.4mm | Flat D-Type Nozzle | Wire and connector soldering |
| 911-30D | 3.0mm | Flat D-Type Nozzle | Large-pad and ground-plane soldering |
Technical Specifications
| Parameter | Specification |
|---|---|
| Tip Shape | Flat D-Type Nozzle |
| Working Temperature | 320°C – 380°C (Recommended) |
| Heating Type | All-in-One Heating Core + Nozzle |
| Surface Treatment | Iron Plating + Protective Coating |
| Compatible With | QUICK 911 Series Automatic Soldering Systems |
| MOQ | 100 pcs per size |
| OEM/ODM | Available — Custom sizes, shapes, and coatings |
How It Improves Production Efficiency
The flat D-type nozzle design of the 911 D soldering tip provides a broad, uniform contact surface that helps improve heat distribution and solder flow consistency during automated soldering operations. The all-in-one heating core and nozzle design eliminates the need for additional accessories, reducing setup time and maintenance frequency.
Manufacturing Quality Control
Every batch of 911 D soldering tips undergoes multi-stage inspection before shipment:
- Tip dimension inspection (width, length, flatness tolerance)
- Nozzle geometry and flatness inspection
- Plating thickness control
- Visual inspection for surface defects
Why Choose Zhongzhen
- Factory Direct: We manufacture 911 D soldering tips in-house with strict quality control
- OEM/ODM Support: Custom tip sizes, shapes, and plating solutions available
- Stable Supply: Consistent production capacity for ongoing orders
- Competitive Pricing: Factory-direct wholesale pricing for bulk orders
- Technical Support: Engineering team available for application guidance
Custom Solutions
Need a custom tip size, shape, or coating? We offer OEM/ODM services tailored to your production requirements. Send us your existing soldering tip sample or drawing — our engineering team can analyze and develop a replacement solution that matches your specifications.
Get a Quote
Interested in 911 D soldering tips for your production line? Contact Zhongzhen for a competitive quote. Samples available upon request.
