911-PC Series Soldering Iron Tips (1.0mm / 1.3mm / 1.6mm / 2.4mm / 3.0mm / 4.0mm / 5.0mm)
911-PC Soldering Tip Series – 7 Sizes for Every Application
The 911-PC soldering tip series is designed for general-purpose soldering work, from fine SMD rework to heavy-duty through-hole soldering. With seven sizes ranging from 1.0mm to 5.0mm, this chisel tip series covers the full spectrum of electronics manufacturing and repair applications.
What Does “PC” Mean?
“PC” stands for Plated Chisel — a flat, wedge-shaped tip with a beveled working face. The chisel shape provides a large heat transfer surface while maintaining precise positioning, making it the most versatile tip shape for everyday soldering tasks.

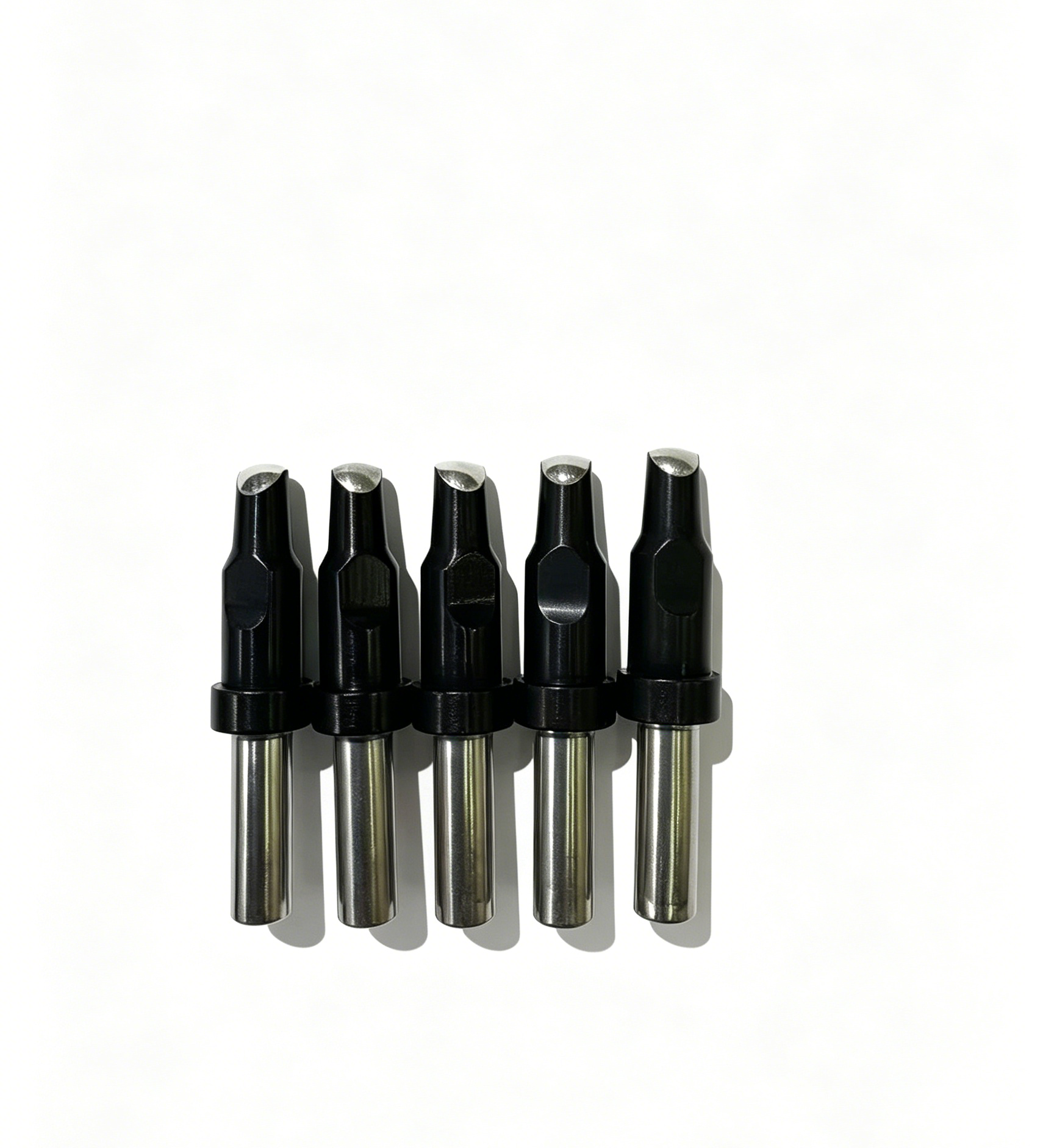

911-PC soldering tip specifications – 7 sizes from 1.0mm to 5.0mm chisel tip
7 Available Sizes
| Model | Tip Width | Recommended Use |
|---|---|---|
| 911-10PC | 1.0mm | Very fine SMD work, 0402/0603 components, micro soldering |
| 911-13PC | 1.3mm | Fine pitch SMD, 0805 components, small IC pins |
| 911-16PC | 1.6mm | 0805/1206 components, general SMD rework, small through-hole |
| 911-24PC | 2.4mm | Standard through-hole components, connectors, medium wire soldering |
| 911-30PC | 3.0mm | Through-hole soldering, larger connectors, thick wires |

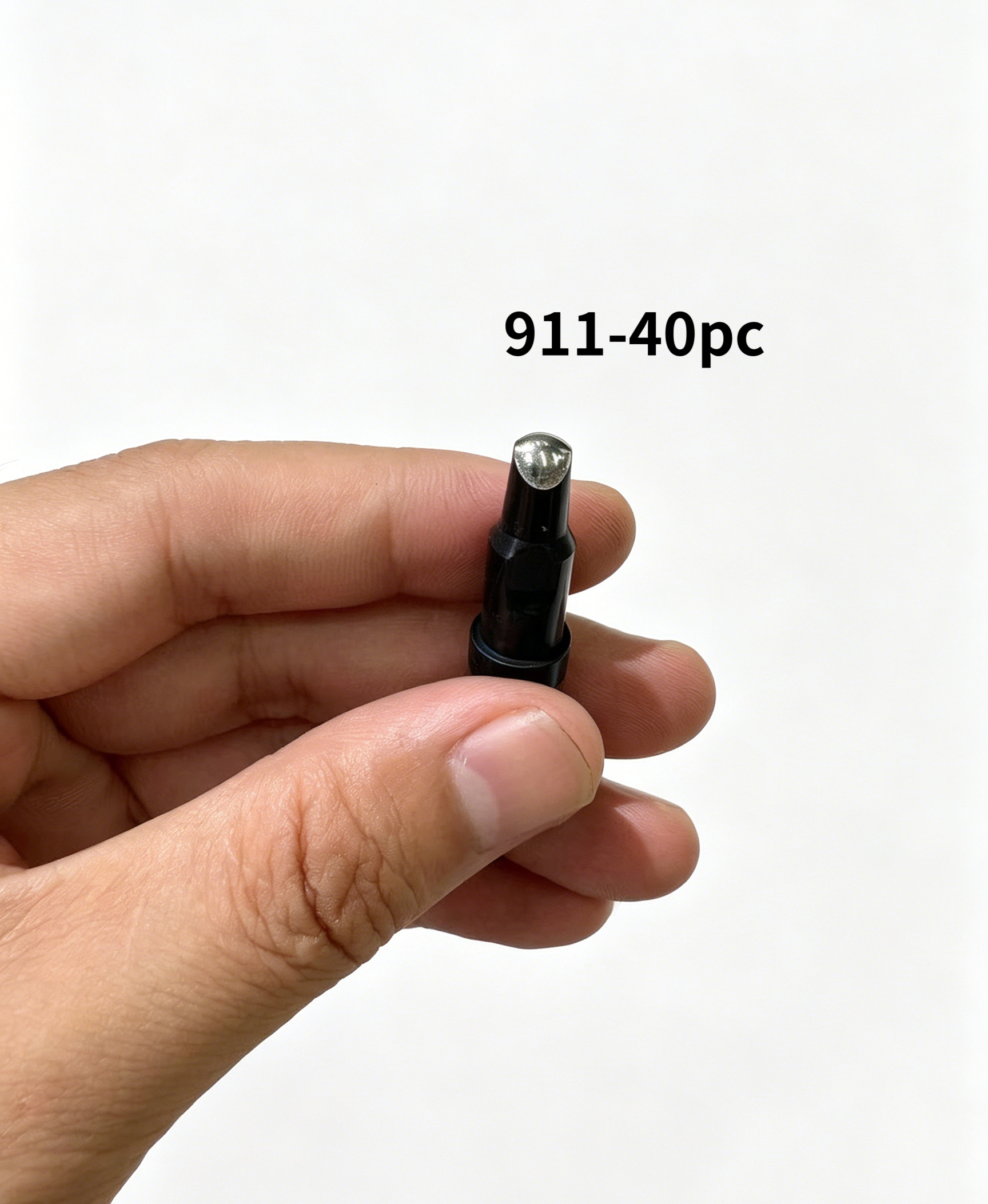

| 911-40PC | 4.0mm | Heavy-duty soldering, ground planes, large connectors |
| 911-50PC | 5.0mm | High-mass soldering, thick cables, bus bars, large ground planes |
911-PC Soldering Tip Key Features
- 7 Size Options — The 911-PC soldering tip range goes from 1.0mm fine tip to 5.0mm heavy-duty, one series covers all production needs
- Fast Heat Recovery — Pure copper core delivers rapid heat transfer for consistent soldering results
- Long Life Iron Plating — Thick molten-iron plating resists corrosion and extends tip lifespan by 30-50%
- Anti-Wetting Nickel Layer — Prevents solder from climbing up the tip body during extended use
- Chrome Protective Layer — Outer chrome coating prevents oxidation and corrosion of the tip body
- Precision Machined — Tight tolerances ensure consistent fit and performance across every batch
- Wide Compatibility — Fits all 911 series soldering stations and handpieces
Typical Applications
- Electronics assembly and PCB manufacturing
- SMD rework and circuit board repair
- Through-hole component soldering
- Wire harness and connector soldering
- Instrument and precision meter assembly
- Automotive electronics repair
- Aerospace and medical device manufacturing
Why Choose Zhongzhen 911-PC Soldering Tips?
At Zhongzhen Technology, we manufacture every soldering tip in-house using our proprietary molten-iron plating process. This creates a denser, more uniform iron layer than standard electroplating — resulting in tips that last significantly longer than budget alternatives.
All 911-PC soldering tips undergo 100% quality inspection before shipment, including dimension verification, thermal conductivity testing, and wetting performance testing. We stand behind every tip we sell.
OEM & Customization
Need custom tip sizes, shapes, or branding? We offer full OEM/ODM services for all 911 series soldering tips. Contact our engineering team to discuss your specific requirements.
Looking for other tip shapes? Explore our full range of 911 series soldering tips for every soldering application.
