911G-PC Series Soldering Tips for Automatic Soldering Machines (1.0mm / 1.3mm / 1.6mm / 2.0mm / 2.4mm / 3.0mm / 4.0mm / 5.0mm)
911G-PC Soldering Tip Series for Automatic Soldering Machines
The 911G-PC soldering tip series is engineered specifically for 911G automatic soldering machines and robotic soldering systems. Featuring a flat chisel (PC) geometry with eight sizes from 1.0mm to 5.0mm, this series delivers consistent, reliable performance in high-volume electronics manufacturing.
What is a 911G-PC Tip?
“911G” designates the automatic soldering machine series, while “PC” stands for Plated Chisel — a versatile flat bevel tip shape. The chisel tip provides a large contact area for fast heat transfer, making it ideal for general-purpose automated soldering from fine pitch components to larger through-hole joints.
911G-PC soldering tip size chart – 8 models from 1.0mm to 5.0mm chisel tip
8 Available Sizes
| Model | Tip Width | Recommended Application |
|---|---|---|
| 911G-10PC | 1.0mm | Fine pitch SMD, 0402/0603 components, micro soldering |
| 911G-13PC | 1.3mm | 0805 components, small IC pins, fine SMD rework |
| 911G-16PC | 1.6mm | 0805/1206 components, general SMD soldering |
| 911G-20PC | 2.0mm | Standard SMD, small through-hole, general automation |
| 911G-24PC | 2.4mm | Through-hole components, connectors, wire soldering |
| 911G-30PC | 3.0mm | Larger connectors, thick wires, power components |
| 911G-40PC | 4.0mm | Heavy-duty soldering, ground planes, large connectors |

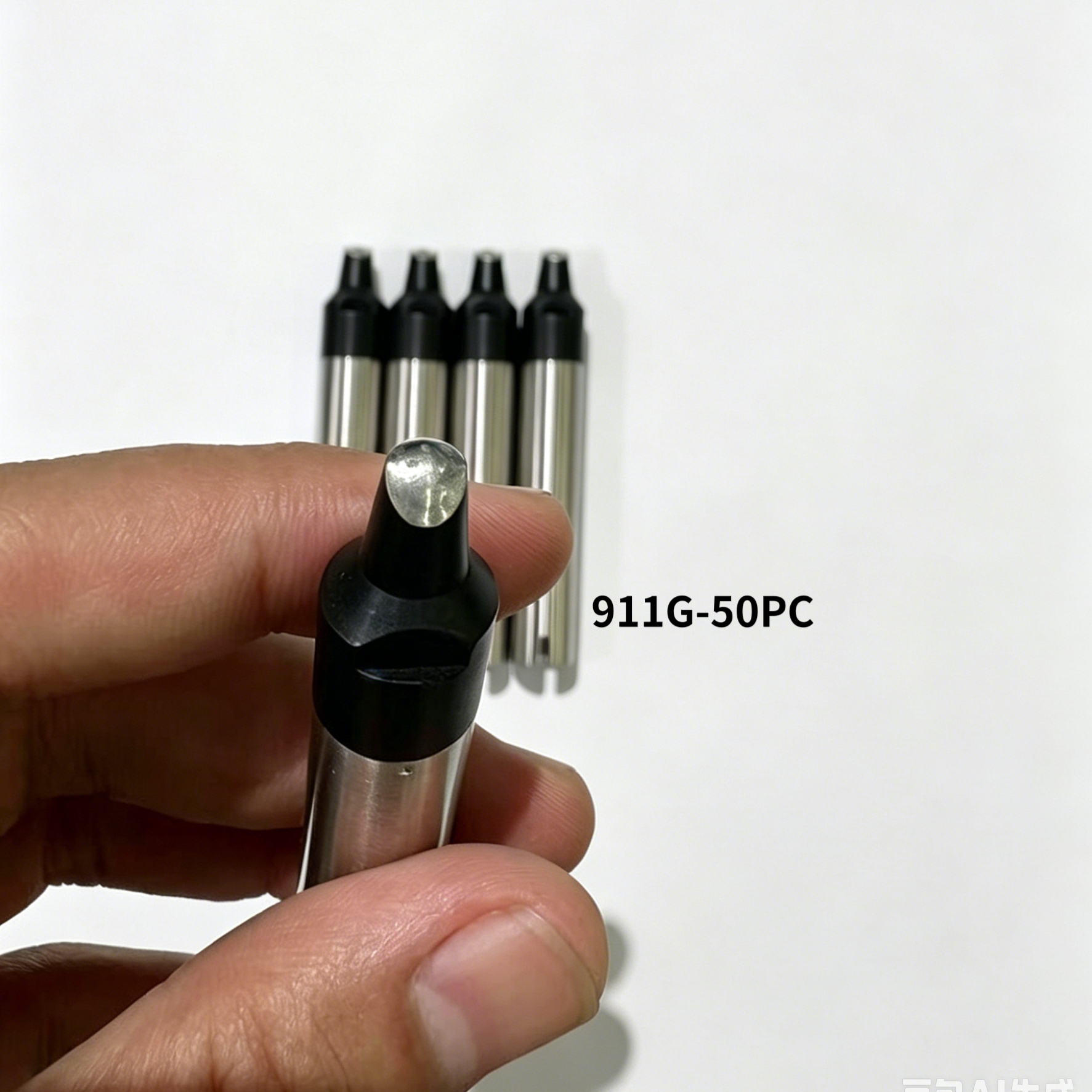

| 911G-50PC | 5.0mm | High-mass soldering, bus bars, thick cables, large pads |
911G-PC Soldering Tip Key Features
- 8 Size Options — The 911G-PC soldering tip range covers 1.0mm to 5.0mm, matching every automated soldering application on your production line
- Fast Thermal Response — Pure copper core with 911G induction heating delivers instant heat recovery for high-speed production
- Long Life Iron Plating — Thick molten-iron plating resists corrosion from active flux, extending tip life in continuous operation
- Precision Machined — CNC machined to tight tolerances for perfect fit and consistent tip position in automated systems
- Anti-Wetting Nickel Layer — Prevents solder from climbing up the tip body during extended production runs
- Chrome Outer Layer — Protects the tip body from oxidation and corrosive factory environments
- Plug-and-Play Compatibility — Direct replacement for 911G series auto soldering machines, no adaptation needed
Typical Automated Applications
- PCB assembly lines (SMT + through-hole)
- Automated wire harness soldering
- Connector pin soldering
- LED strip and lighting manufacturing
- Automotive electronics production
- Consumer electronics assembly
- Medical device manufacturing
Why Choose Zhongzhen 911G-PC Soldering Tips?
At Zhongzhen Technology, we manufacture every 911G-PC soldering tip in-house using our proprietary molten-iron plating process. This creates a denser, more uniform iron layer than standard electroplating — resulting in tips that last 30-50% longer than budget alternatives, reducing your cost per joint and minimizing production line downtime for tip changes.
All tips undergo 100% quality inspection before shipment, including dimension verification, thermal response testing, and solder wetting performance testing. We stand behind every tip we sell.
OEM & Customization
Need custom tip sizes, special shapes, or your own branding? We offer full OEM/ODM services for all 911G series automatic soldering tips. Contact our engineering team to discuss your specific production requirements.
Looking for other 911G tip shapes? Explore our 911G series soldering tips collection, including DV1 V-groove and DV2 double V-groove models for wire soldering.
